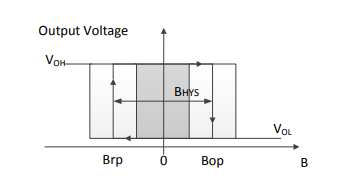

The bipolar Hall requires two poles to control the high and low levels respectively. This featur e can be used with multipole ring magnets or other similar structures to create different applications such as brushless motor position sensing, speed odometer measurements, and more.
| High voltage bipolar magnetic sensor | |||||||||
| Model | output | Voltage （V）MIN |
Voltage （V）MAX |
Reverse voltage Protect（V） |
Magnetic working point （Gs） |
Magnetic release point (Gs) |
Working temperature （℃） |
Packaging form | |
 |
AH401 | open drain output | 3.8 | 60 | -60 | 55 | -55 | - 40 to 150 | SOT23 TO92S |
|
AH401F | open drain output | 3.0 | 60 | -60 | 45 | -45 | -40 to 150 | TO92S SOT23 |
|
AH402F | open drain output | 3.0 | 60 | -0.5 | 25 | -25 | -40 to 150 | TO92S SOT23 |
|
AH402H | open drain output | 3.0 | 60 | -60 | 25 | -25 | -40 to 150 | TO92S SOT23 |
| BICMOS/BCD Bipolar magnetic sensor | |||||||||
| Model | output | Voltage （V）MIN |
Voltage （V）MAX |
Reverse voltage Protect（V） |
Magnetic working point （Gs） |
Magnetic release point (Gs) |
Working temperature （℃） |
Packaging form | |
|
AH501 | 3-wire current output | 2.7 | 30 | -20 | 9 | -9 | - 40 to 150 | SOT23 TO92S |
|
AH502 | 3-wire current output | 2.7 | 30 | -20 | 25 | -25 | - 40 to 150 | SOT23 TO92S |
|
AH504 | 3-wire current output | 2.7 | 30 | -20 | 73 | -73 | -40℃~150℃ | SOT23 TO92S |
|
AH505 | 3-wire current output | 2.7 | 30 | -20 | 133 | -133 | -40℃~150℃ | SOT23 TO92S |
|
AH541 | 2-wire current output | 3.0 | 30 | -20 | 43 | -43 | -40℃~150℃ | SOT23,Small SOT23,TO92S |
|
AH542 | 2-wire current output | 3.0 | 30 | -20 | 121 | -121 | -40℃~150℃ | SOT23,Small SOT23,TO92S |
