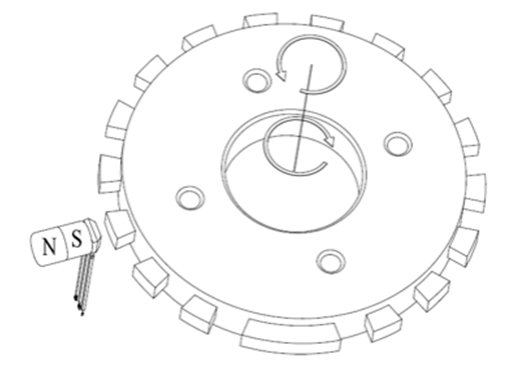

Speed&Direction Sensors
Alfa is a market leader for speed and direction sensor IC. Alfa strives to continuously improve quality and performance to meet the ever-increasing demands of the automotive and Industrial applications.
| Resistance to high pressure level pole magnetic se | |||||||||
| Model | output | Voltage （V）MIN |
Voltage （V）MAX |
Reverse voltage Protect（V） |
Magnetic working point （Gs） |
Magnetic release point (Gs) |
Working temperature （℃） |
Packaging form | |
 |
AH700 | Speed/Dir | 3.8 | 30 | -40 | 40 | -40 | - 40 to 150 | TO94 SOP8 |
|
AH701 | Speed/Dir | 3.8 | 30 | -40 | 75 | -75 | - 40 to 150 | TO94 SOP8 |
|
AH702 | Speed/Dir | 3.8 | 30 | -40 | 130 | -130 | - 40 to 150 | TO94 SOP8 |
|
AH710 | Speed direction A/B output | 3.8 | 30 | -40 | 40 | -40 | - 40 to 150 | TO94 SOP8 |
|
AH711 | Speed direction A/B output | 3.8 | 30 | -40 | 75 | -75 | - 40 to 150 | TO94 SOP8 |
|
AH712 | Speed direction A/B output | 3.8 | 30 | -40 | 130 | -130 | - 40 to 150 | TO94 SOP8 |
