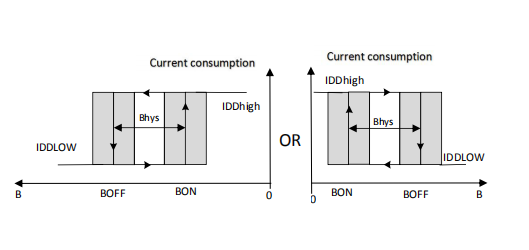

The omnipolar detection chip detects the magnetic field regardless of the north and south poles. When the magnet approaches, it outputs a low level, and when it is far away, it outputs a high level, which produces different applications such as magnetic substance detection, proximity switches, contactless positioning, and the like.
| High voltage omni-polar hall swtich | |||||||||
| Model | output | Voltage （V）MIN |
Voltage （V）MAX |
Reverse voltage Protect（V） |
Magnetic working point （Gs） |
Magnetic release point (Gs) |
Working temperature （℃） |
Packaging form | |
 |
AH451 | open drain output | 3.5 | 40 | -60 | 80 | 50 | -40~125 | TO92S SOT23 |
|
AH452 | open drain output | 3.5 | 40 | -60 | 50 | 30 | -40~125 | TO92S SOT23 |
